750W Rated
Top Speed
Range
Battery
Payload Capacity
Sensor

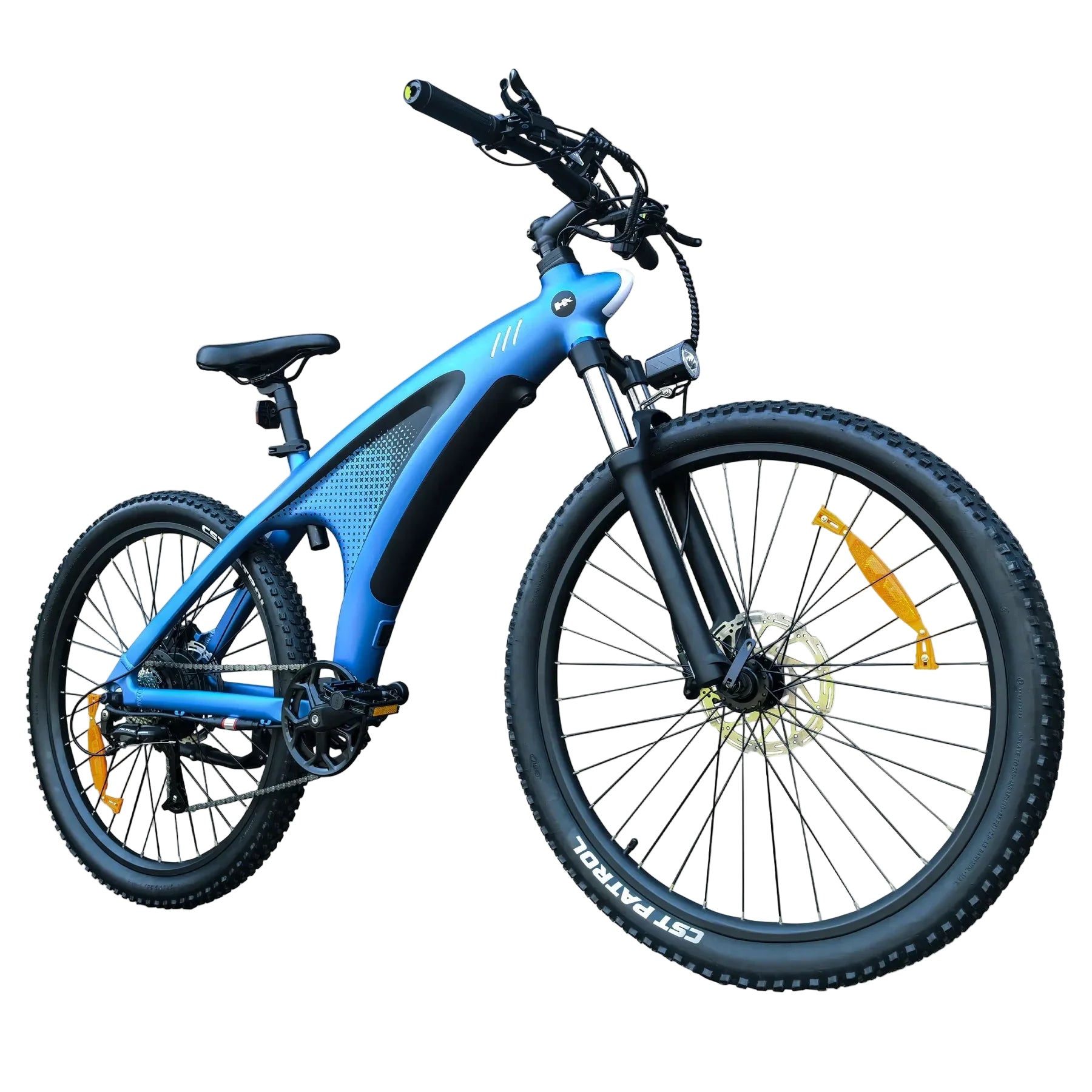

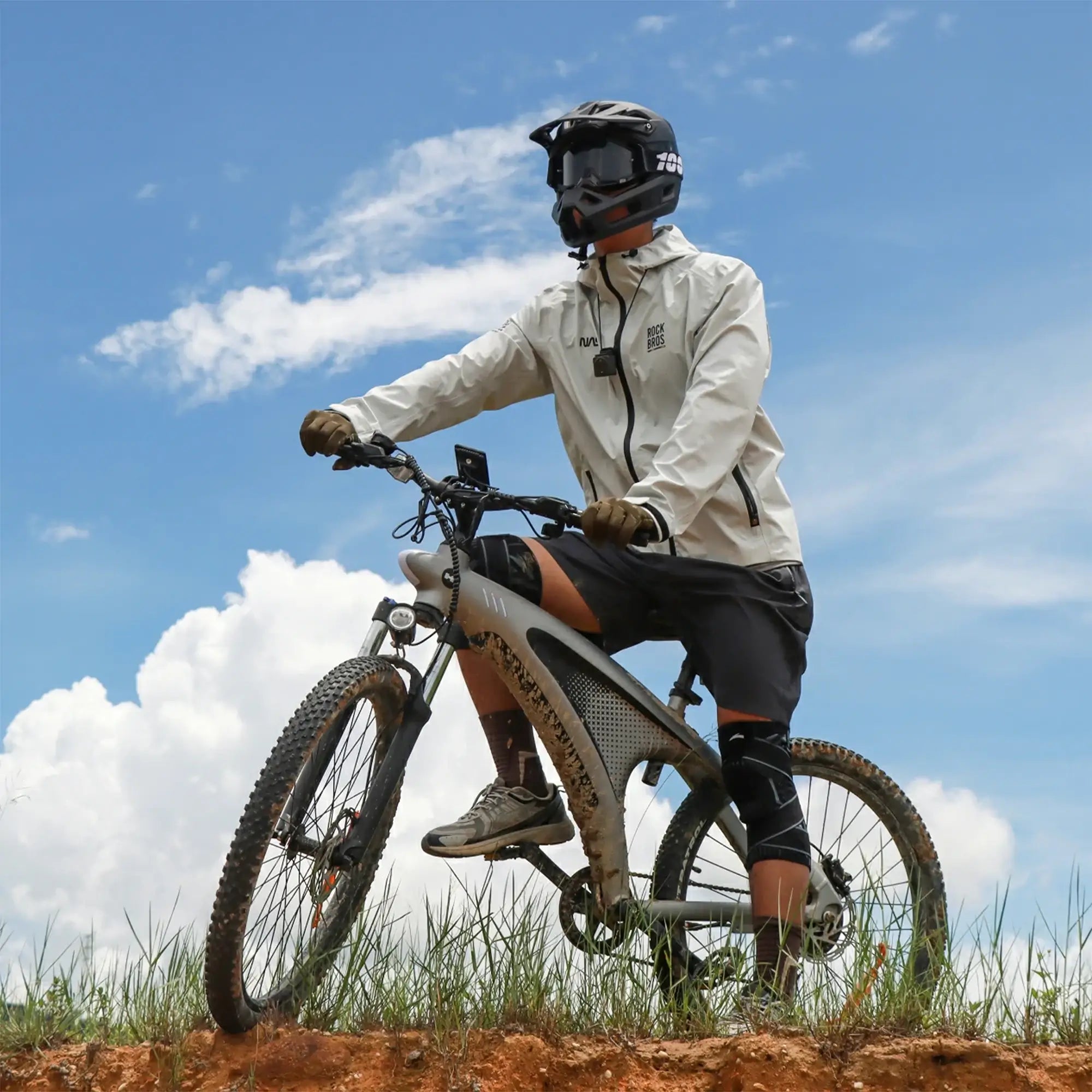

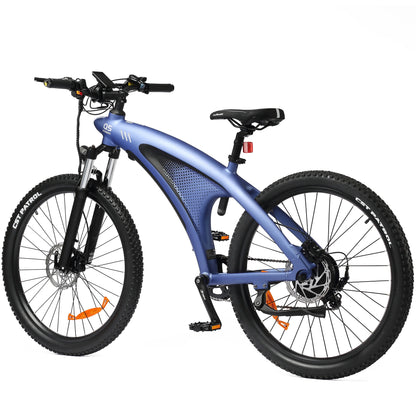

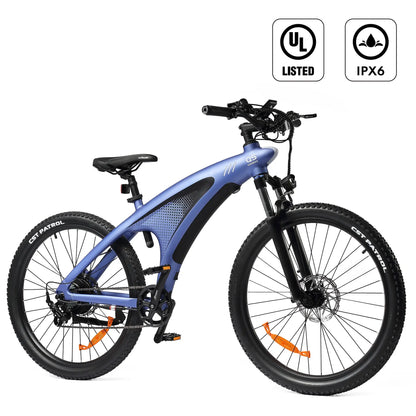

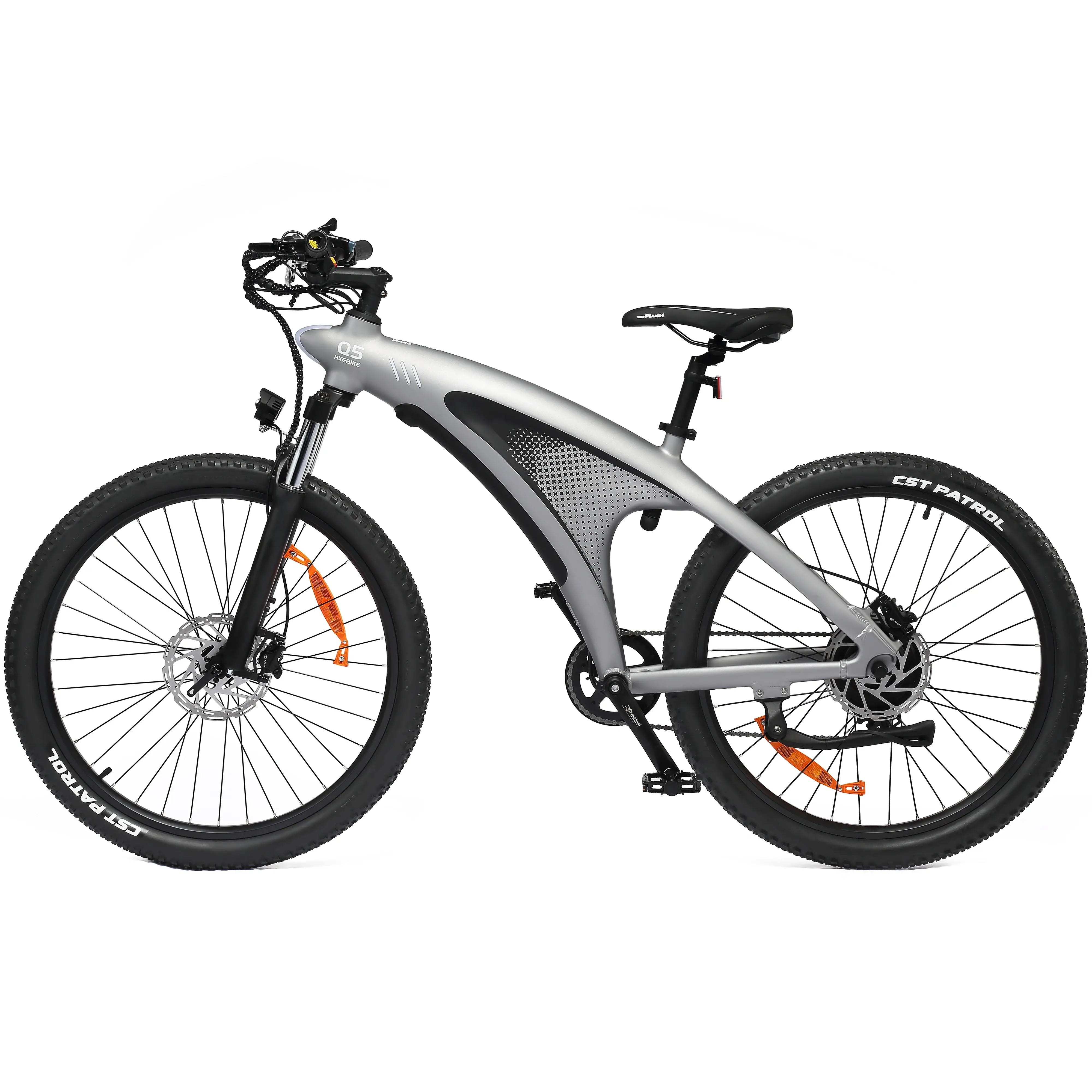

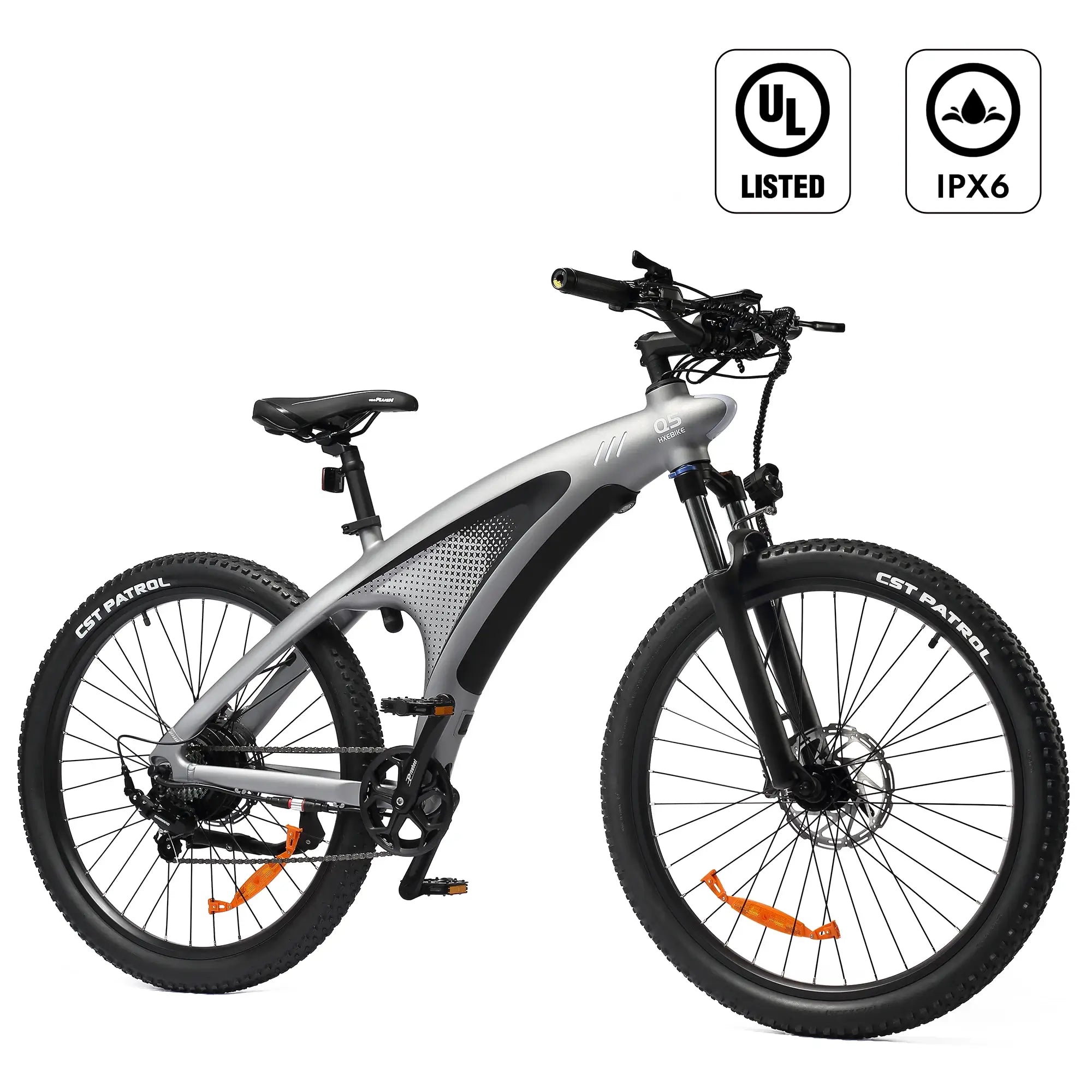

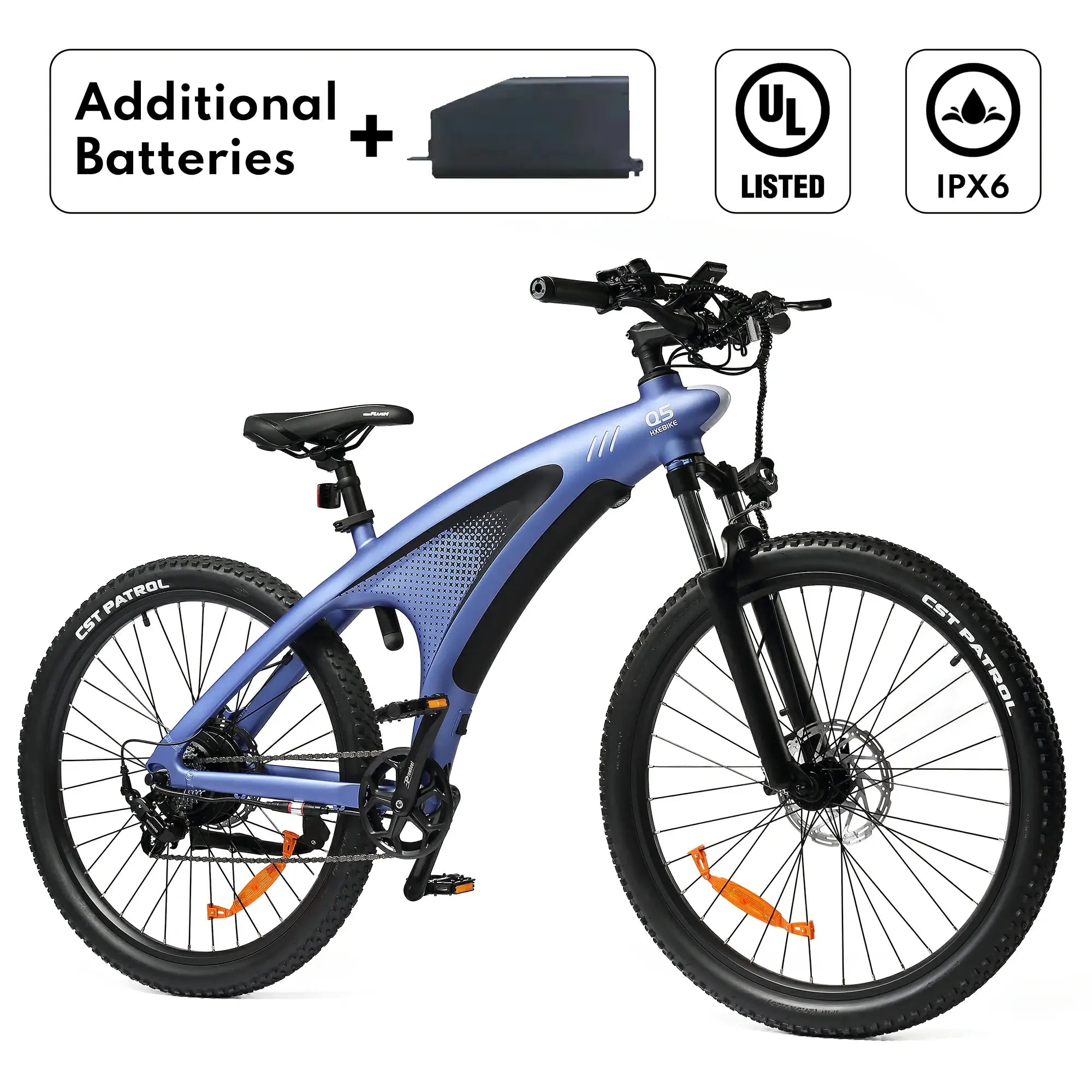

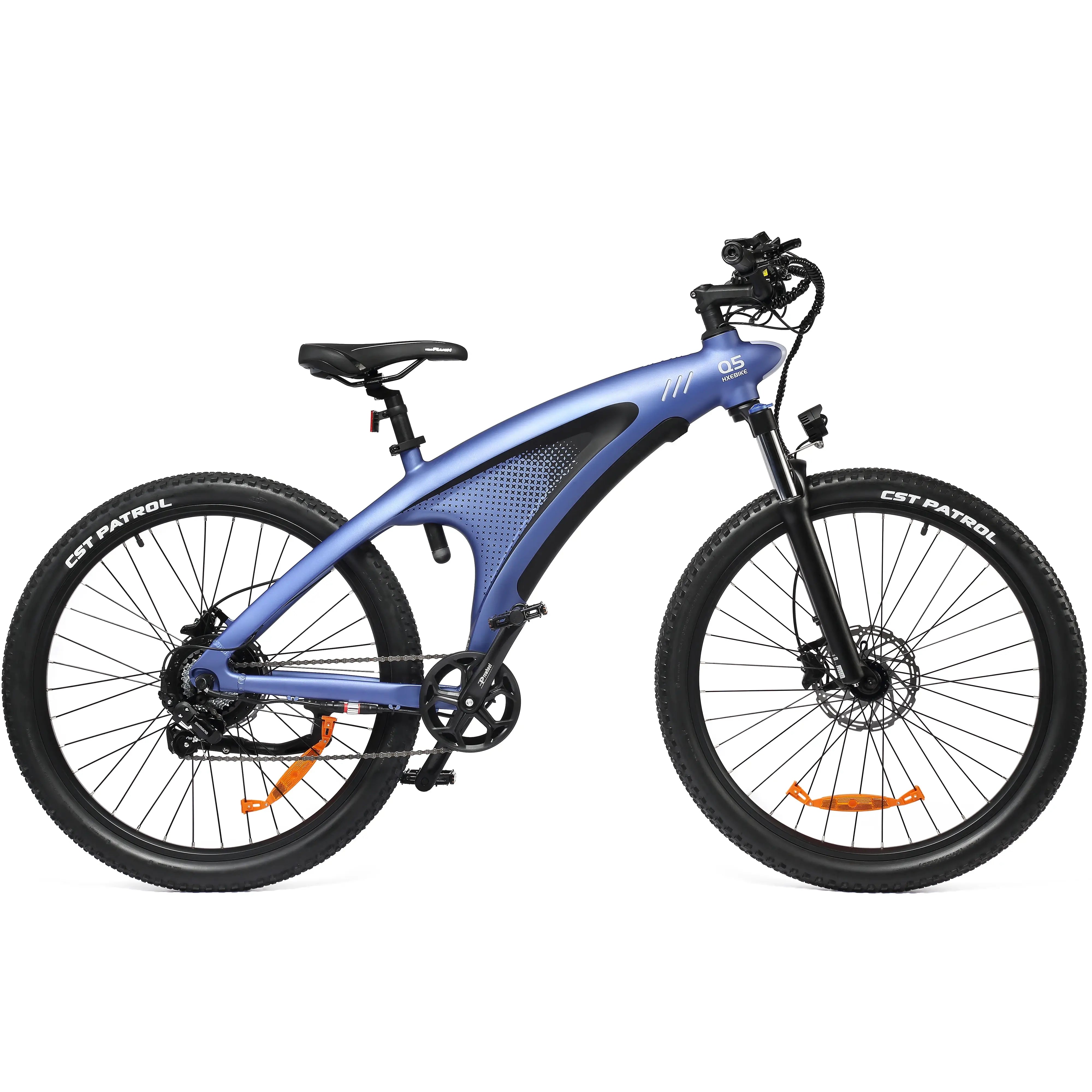

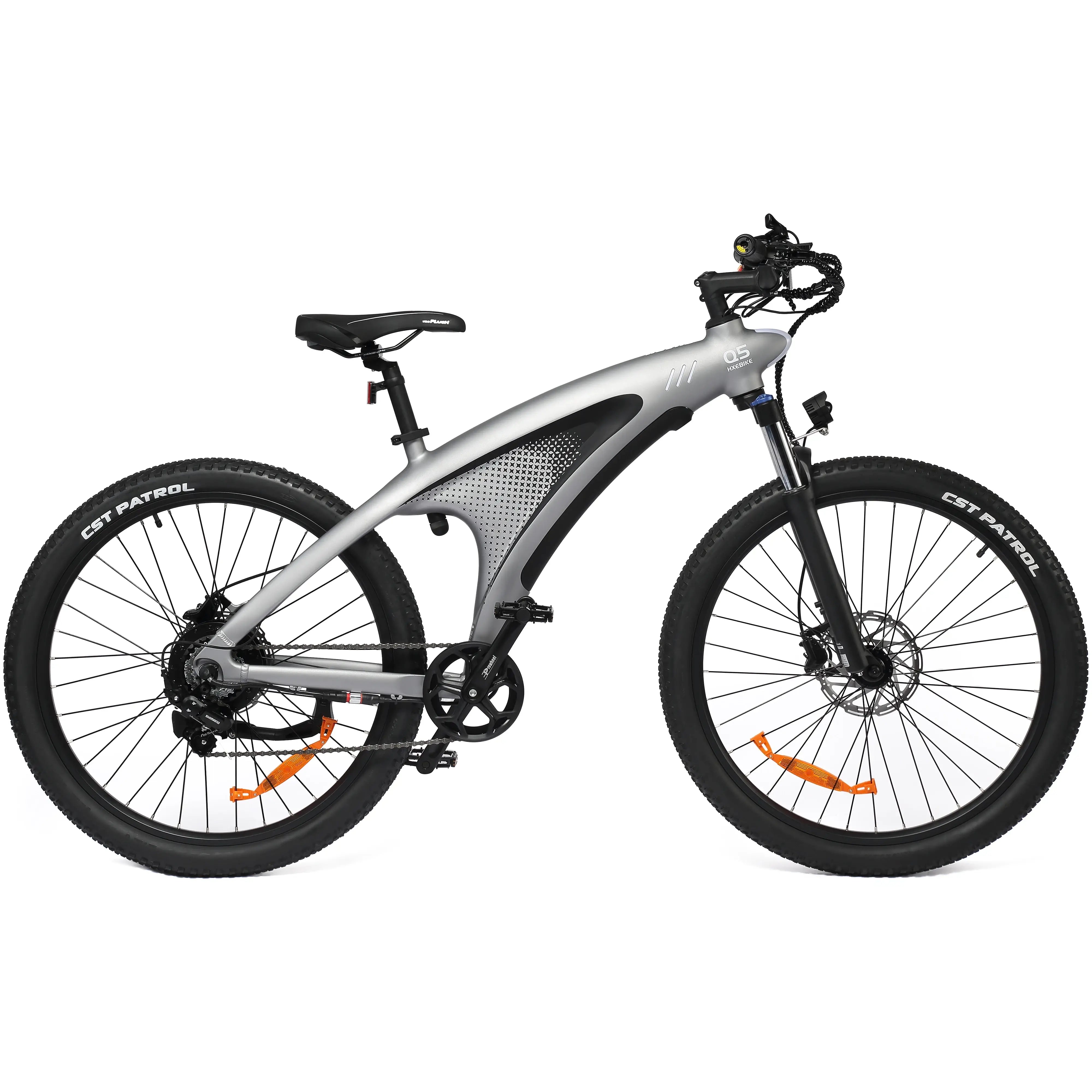

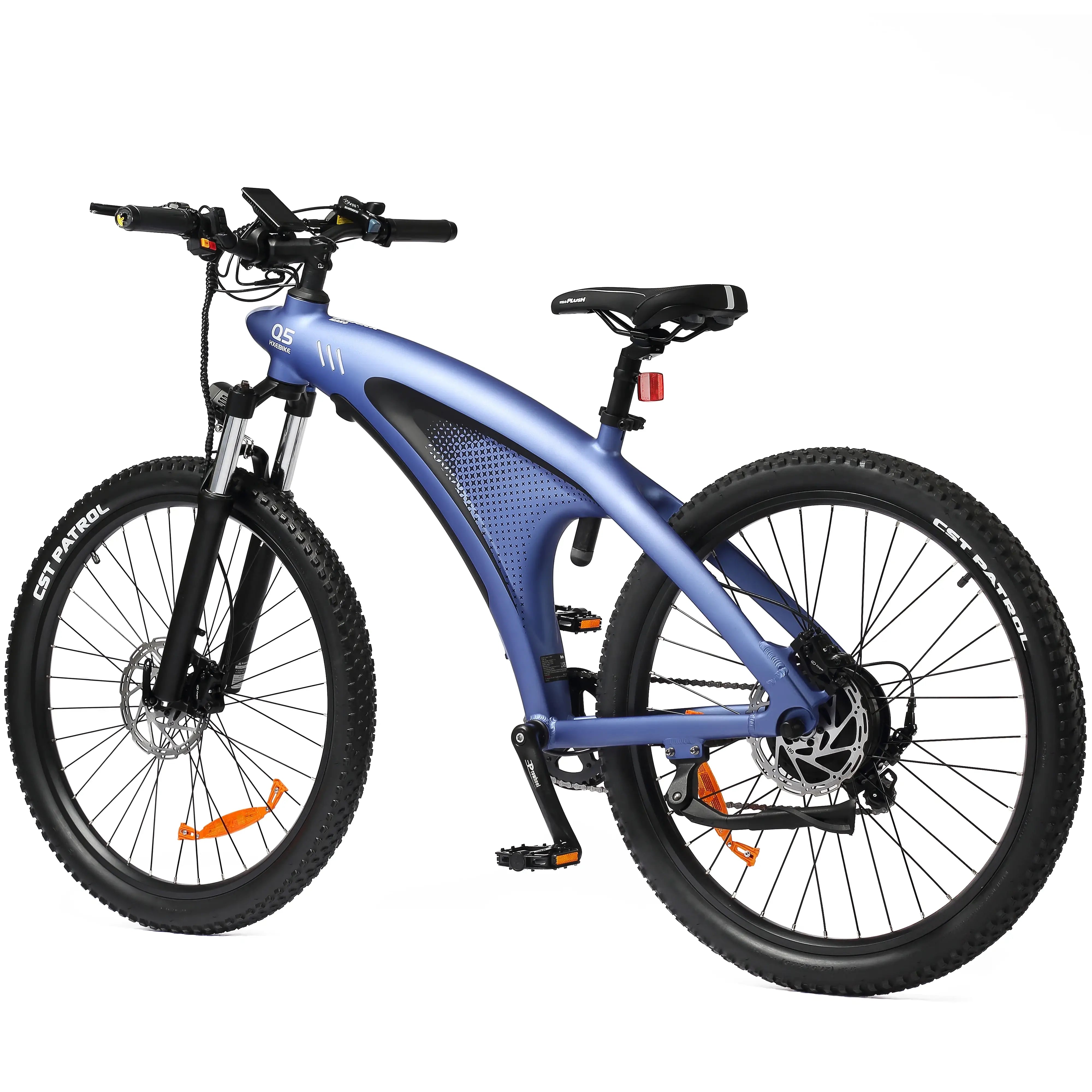

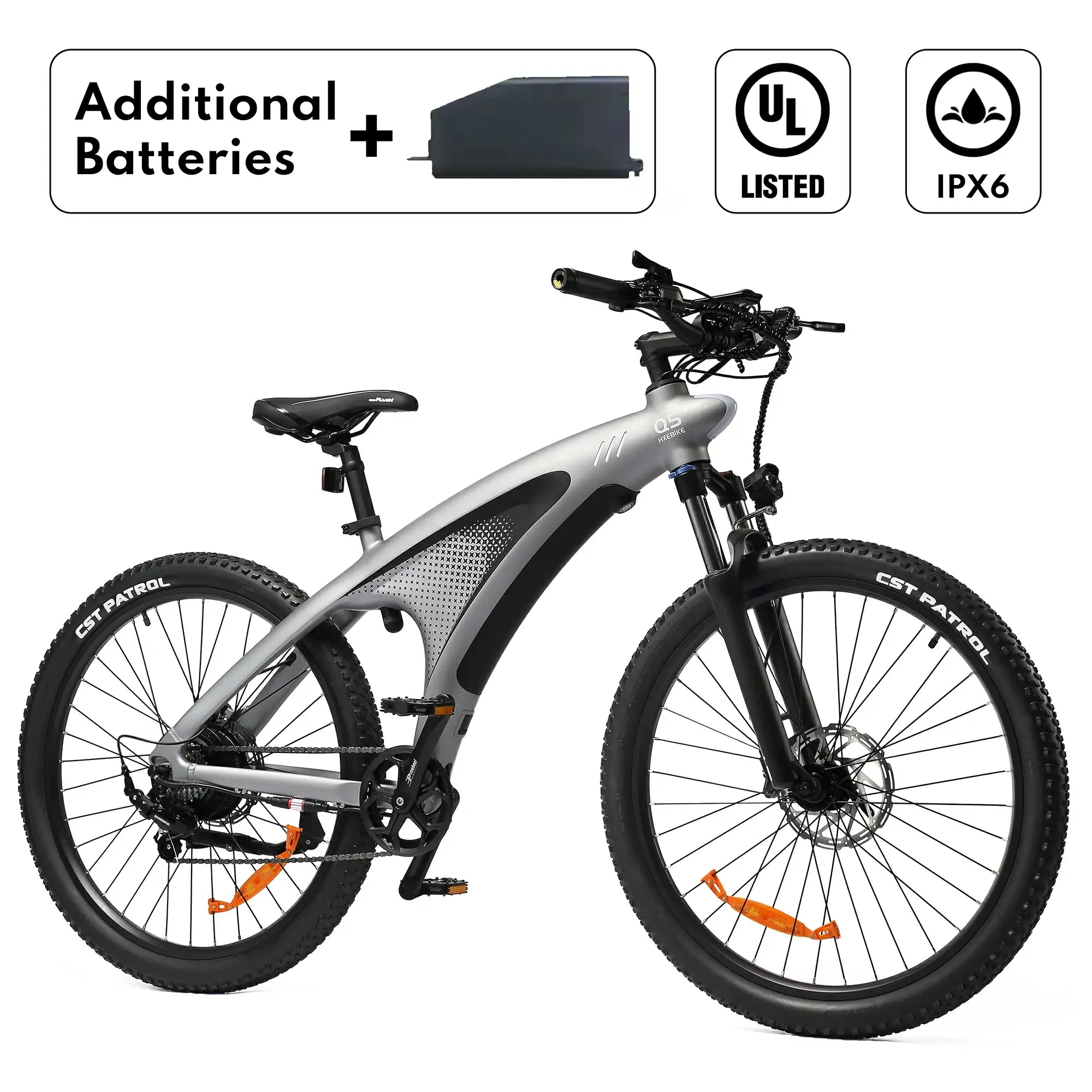

Shark Mako🦈 27.5×2.25" E-MTB
World's first biomimetic aerodynamic ebike frame is more than just Good-looking.
Why choose HX Shark Mako E-bike?
Eye catching frame design
Most resembles aggressive common mountain/gravel bike frame design
Aggressive entry price point
30 day return policy and 2 years warranty
Versatility of pedal assist for Class 1 & 2 e-bikes
UL 2849 Certified - Download👆
Pairs well with
US Shipping Policy
Please DO NOT fill out the PO Box address, as it is not able to receive items.
- Delivery days: 3-7 business days
- Order processing time: 1 business day
- Ship from CA & TX & NJ & GA warehouses
Warehouse address
- California Warehouse: City of Redlands, CA
- Texas Warehouse: Houston, TX
- New Jersey Warehouse: Edison, NJ
- Georgia Warehouse: Rincon,GA
30-Day Money-Back Guarantee
HXRiding products are eligible for return within 30 days in the event of a verified quality issue, in accordance with our refund policy. All return requests must first be reviewed and approved by our after-sales support team. Once authorization is granted and the item is received and inspected at our warehouse, a full refund will be issued. For complete details on eligibility and requirements, please refer to the HX refund policy.
Hassle-Free 2-Year Warranty
HXRiding offers a simple, hassle-free warranty to give you peace of mind. All pre-owned and refurbished products come with their own specific warranty, which you can find on the product listing.
If you have any questions, feel free to reach out to us at Support@HXRiding.com with your order receipt for confirmation.
This limited warranty provided by the manufacturer does not affect any statutory warranties that may be available under the law.
750W Rated
Top Speed
Range
Battery
Payload Capacity
Sensor
Shark Mako🦈 27.5×2.25" E-MTB
Aerospace-Grade Aluminum Frame
Crafted from 6061-T6 aviation-grade aluminum alloy, the Bionic Mako Shark fluid-dynamic frame blends lightweight strength with aerodynamic performance. Shark-inspired shaping reduces drag and boosts stability, while hidden cable routing keeps it sleek. IP67-rated sealing protects from dust and water, tested through 200,000 fatigue cycles for reliability. Reinforced tapered tubing and a one-piece forged structure ensure lasting rigidity and durability.
🔋48V 20Ah EVE Battery
Delivers up to 36 Miles of range with a 2-Year Warranty, ensuring 80% capacity retention after two years. Built with 91 EVE INR18650-3200mAh automotive-grade cells and a Smart BMS for real-time safety protection, featuring 8-fold protection including overcharge, over-discharge, overcurrent, short-circuit, temperature, undervoltage, balancing, and reverse connection safeguards. Full charge takes 6 hours.IPX6-rated 12 lbs pack is dustproof, shockproof, and waterproof, detachable and easy to charge anywhere. Performs from –20°C to 60°C, lasting over 1200+ cycles with consistent output. Certified to UL 2849, UL 2271, UN 38.3, and FCC Part 15 — safe, durable

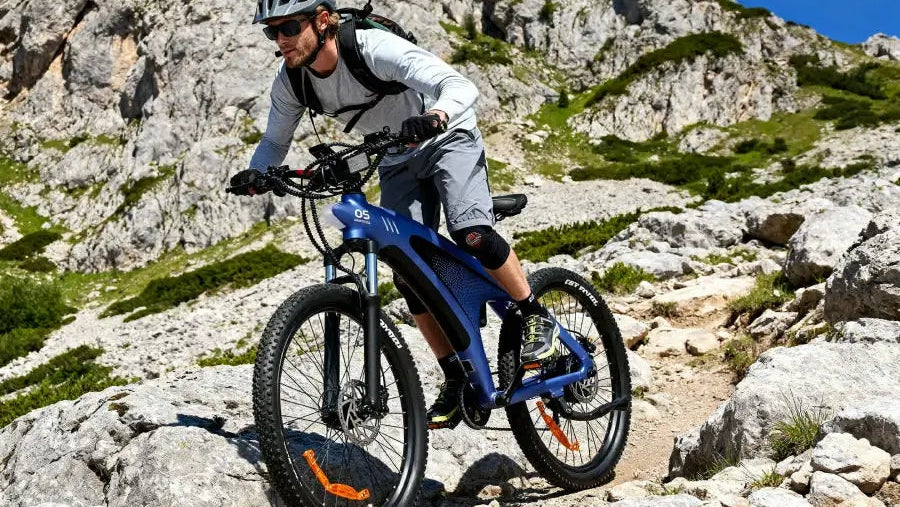

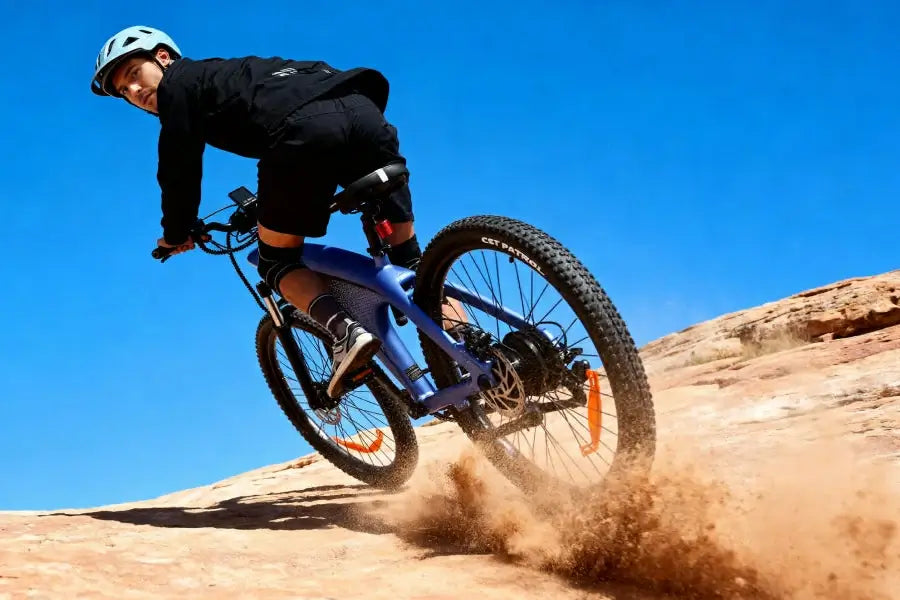

Shark Mako E-MTB – Conquer Steeps with Ultimate Climbing Capability.
⚙️ BaFang SUTTO 1500W Motor
Shark Mako E-MTB delivers ultimate climbing performance on rocks, dirt, and wet slopes, powered by SUTTO’s 1500W peak motor and aerodynamic lightweight frame.
Equipped with BAFANG-customized SUTTO platform (750W rated, 1500W peak), it features 90%+ gear efficiency, honeycomb aluminum cooling, and stable, quiet, durable power under high loads.
Conquer gentle descents with the perfect partner—Shark Mako E-MTB.
Shark Mako: Biomimetic Aero-Dynamic Frame
Shark Mako E-MTB crushes mountain downhill with 6061-T6 aerospace aluminum frame, 100mm adjustable hydraulic fork, and 180mm hydraulic disc brakes.
It stays stable in high-speed corners and bumps, with fully controlled braking on every descent.
Robust Fork & Tires
Pro Fork & Tires: Precision fork with adjustable rebound/damping absorbs sharp impacts;

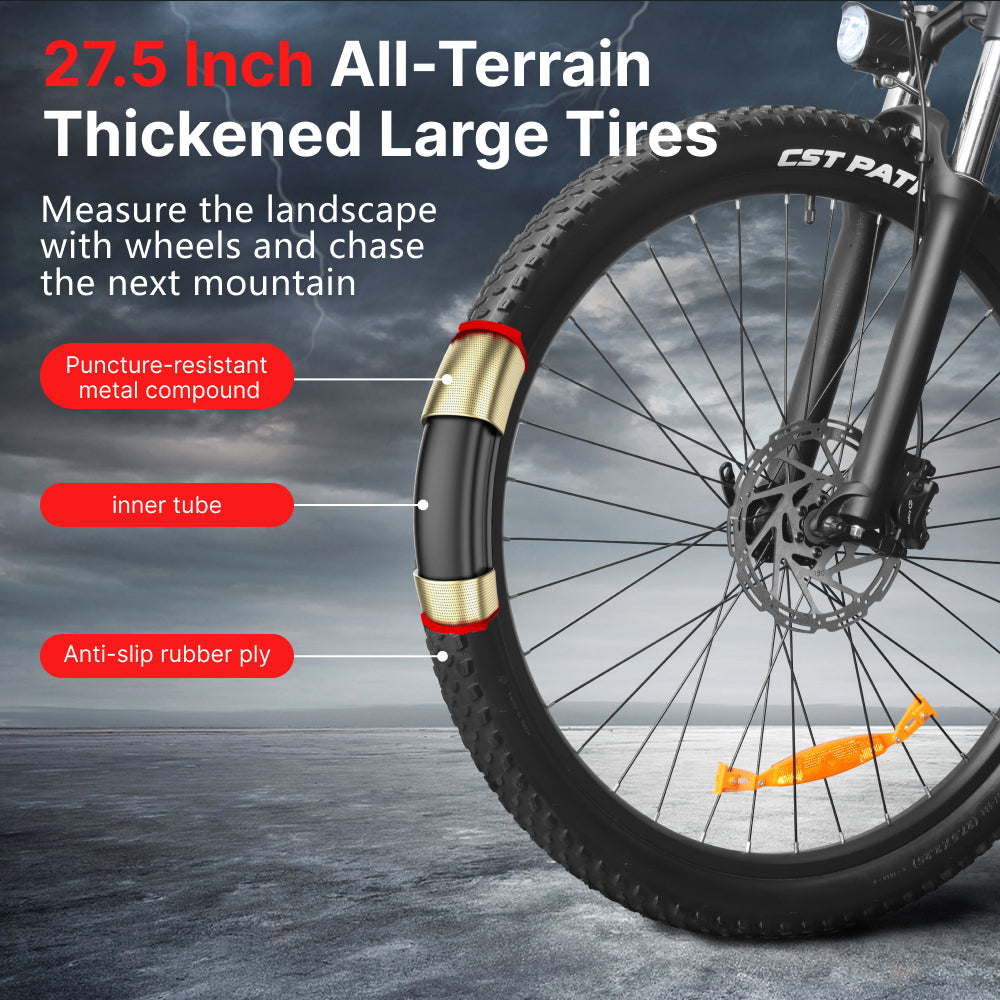

CST puncture-resistant tires feature deep tread and strong lateral support, ensuring stable grip and balanced off-road traction with urban rolling efficiency.
Your trusted companion for epic outdoor crossings.
- Shark Mako E-MTB crushes all terrains—mud, trails, hills, gravel—with IP67 protection, CST 27.5×2.25 all-terrain tires, and 48V sustained power.
- IPX6-sealed motor, battery, and wiring deliver reliable performance in rain, shallow streams, or mud—brakes and suspension stay flawless, no matter the elements.
Shark Mako: The Ultimate Game-Changer for Road Racing.
- Shark Mako’s biomimetic mako shark aero frame, wind-tunnel optimized (12% less drag), enables effortless cruising, crisp acceleration, and stable, precise, quiet high-speed road racing.
- Unlock 37 MPH racing mode—1500W/85 Nm FOC-tuned power delivers smooth, controlled acceleration, dominating sprints on gravel or open terrain.
- Class 1 & 2 adjustability means legal riding wherever you go.
Mako Shark: Your Ideal Companion for Daily Urban Commutes
- All-scenario urban commuting: With smooth start, energy-efficient cruising, and ergonomic design, it meets both daily and leisure travel needs in one go.
- Equipped with 25 km/h compliant Street Mode, it follows Class 2 regulations, fits various urban paths, and is legal, safe, and user-friendly.
E-MTB 37MPH Extreme Challenge
BAFANG 1500W motor eMTB
Forest Riding on the Shark Mako
Beach Riding on the Shark Mako
E-MTB 37MPH Extreme Challenge
Size & Fit
| Frame Size | Standard |
|---|---|
| Wheel Size | 27.5" × 2.25" |
| Seat Tube Length | 12.6" / 32 cm |
| Top Tube Length (Horizontal) | 7.9" / 20 cm |
| Bottom Bracket Drop | 1.6" / 4 cm |
| Head Tube Length | 4.3" / 11 cm |
| Head Tube Angle | 71° |
| Seat Tube Angle | 73° |
| Rear Chainstay Length | 6.9" / 17.5 cm |
| Front Wheel Center | 10.6" / 27 cm |
| Wheelbase | 48.8" / 124 cm |
| Reach | 18.1" / 46 cm |
| Stack Height | 8.5" / 21.5 cm |
| Fork Length | 7.5" / 19 cm |
| Fork Offset | 1.6" / 4 cm |
| Trail | 3.1" / 7.97 cm |
| Standover Height | 28.7" / 73 cm |
| Rider Height | 5'5" ~ 6'3" (165 ~ 190 cm) |
Technical Specifications
| Motor | 48V / 1500W Peak Power Brushless Motor |
|---|---|
| Weight | 61.7 lbs / 28 kg |
| Battery Lifetime | Up to 800 cycles |
| Charger | 48V / 3A |
| Payload Capacity | 400 lbs |
|---|---|
| Range | 75 Miles |
| Top Speed | 37 MPH |
| Battery Charge Time | 5 hours |
| Battery | 48V / 20AH Lithium Battery |
Mechanical
| Spokes | 12-Gauge Stainless Steel |
|---|---|
| Seat Post | 33.9mm Adjustable Aluminum Seat Tube |
| Rims | 27.5" Aluminum Alloy Rims |
| Handlebar | Aluminum Alloy, 24.4" / 620mm, Ø31.8mm |
| Gearing | Shimano SL-TX50-7R, 7-Speed Shifter |
| Frame | 6061 Aluminum Alloy Frame with Internal Battery |
| Derailleur | 7-Speed Shimano Rear Derailleur |
| Crank Set | 170mm Forged Aluminum Crank, Dual 52T |
| Display | 3.7" LCD Color Smart Display |
| Sensor | 85N·m Torque Sensor, 3-Level Pedal Assist |
|---|---|
| Saddle | Height Adjustable Ergonomic Sport Saddle |
| Kickstand | 6061 Aluminum Alloy Kickstand |
| Throttle | Twist Throttle |
| Rear Suspension | — |
| Front Fork | Front Suspension Fork |
| Chain | KMC Z9 Stainless Steel Chain |
| Brakes | 180mm Hydraulic Disc Brakes |
| Tires | CST 27.5" × 2.25" Mountain Tires |
Warranty & Note
| Terms & Conditions |
Warranty applies only to the original HX owner and covers replacement of faulty components. Replacement costs are covered by HX, while the buyer is responsible for shipping fees. |
|---|---|
| Parts | 2 years |
| Battery | 2 years |
|---|---|
| Frame | 2 years |
Assembly Guide

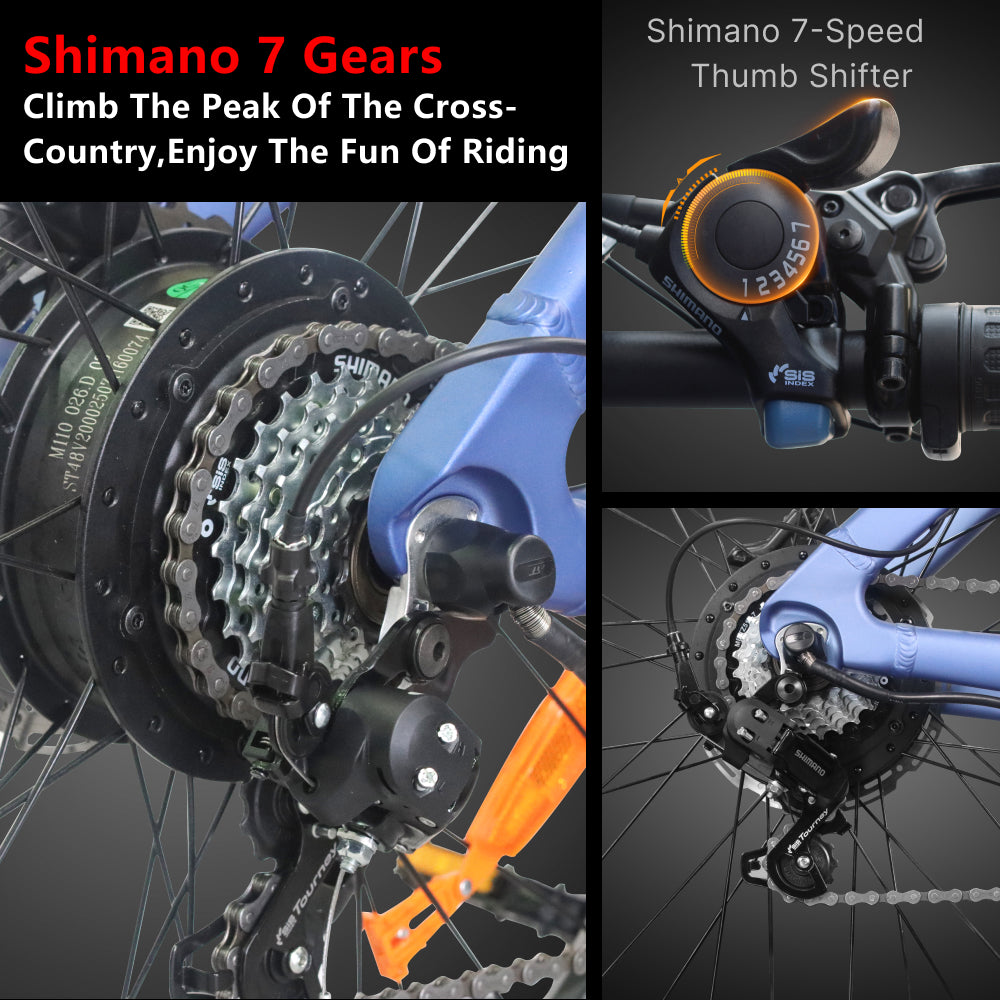

7-Speed Shimano
Experience reliable gear changes with the Shimano Tourney system. Ideal for city commuting and mild inclines, it adjusts seamlessly to varying conditions—delivering comfort, control, and improved riding efficiency.
Adjustable Saddle
The ergonomic saddle is designed for lasting comfort on long rides. Its adjustable height with a quick-release lever makes setup effortless, while cushioned padding minimizes pressure for a smoother cycling experience.
Eco-Friendly Grip
Made with biodegradable materials, the handlebar grip ensures a secure, comfortable hold while promoting an eco-friendly ride with reduced environmental impact.

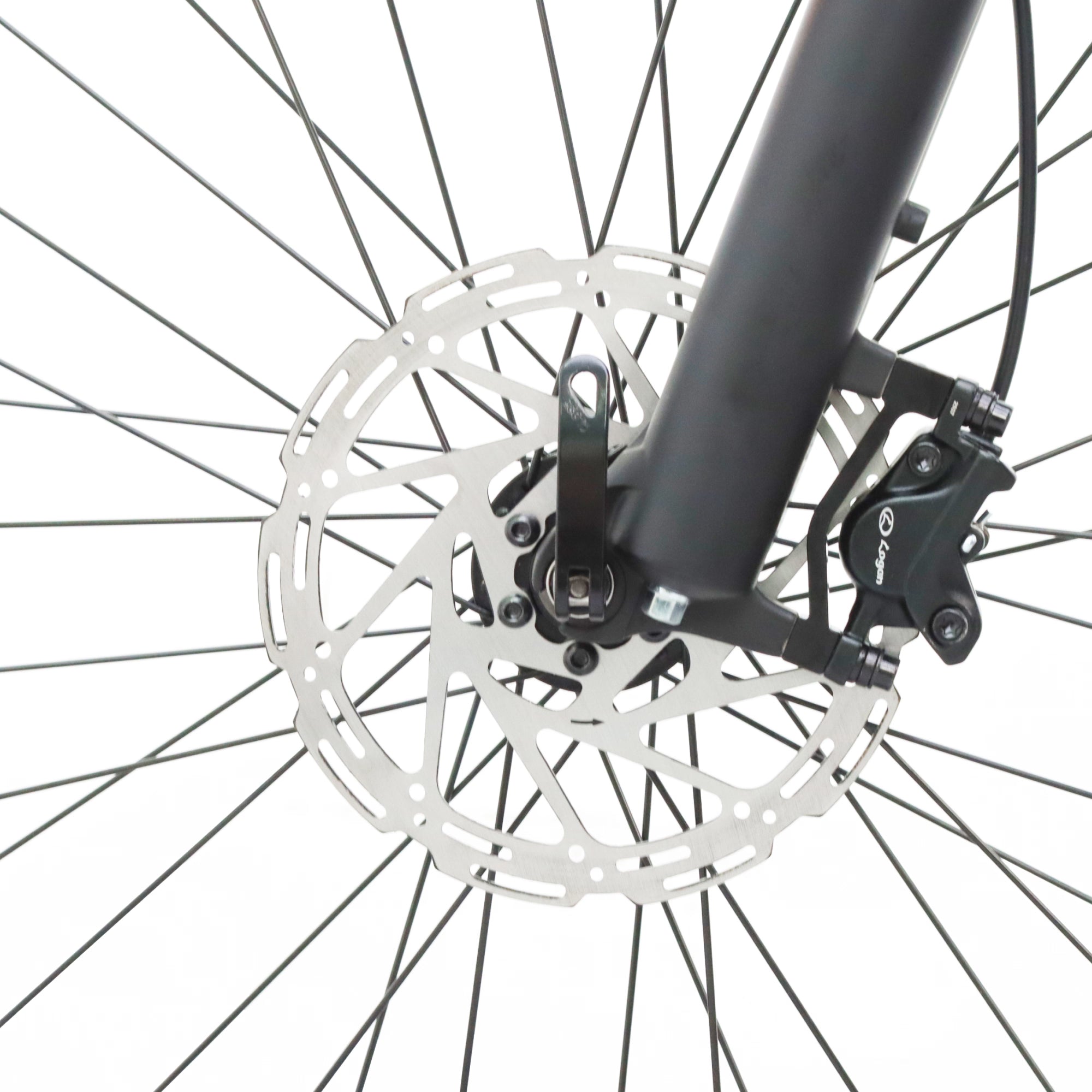

180mm Disc Brakes
HX Shark Mako is equipped with 180mm front and rear disc brakes, delivering strong and reliable stopping power in all conditions—whether navigating urban roads or rugged trails.

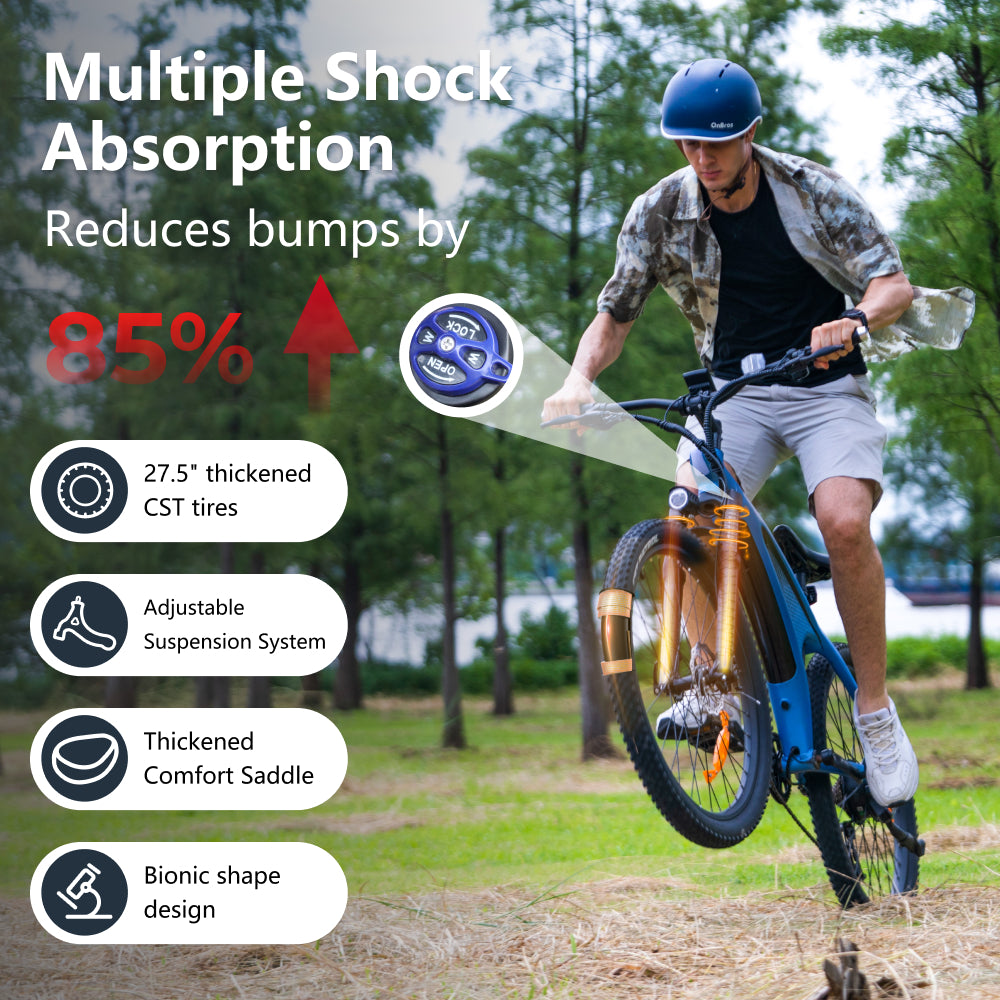

Spring Suspension Fork
Crafted from aerospace-grade 6061-T6 aluminum, Shark Mako’s CNC spring fork with ABS anti-bump system ensures smooth shock absorption and stable control. Adjustable rebound damping and Teflon sleeves deliver responsive, durable performance for both city and off-road rides.

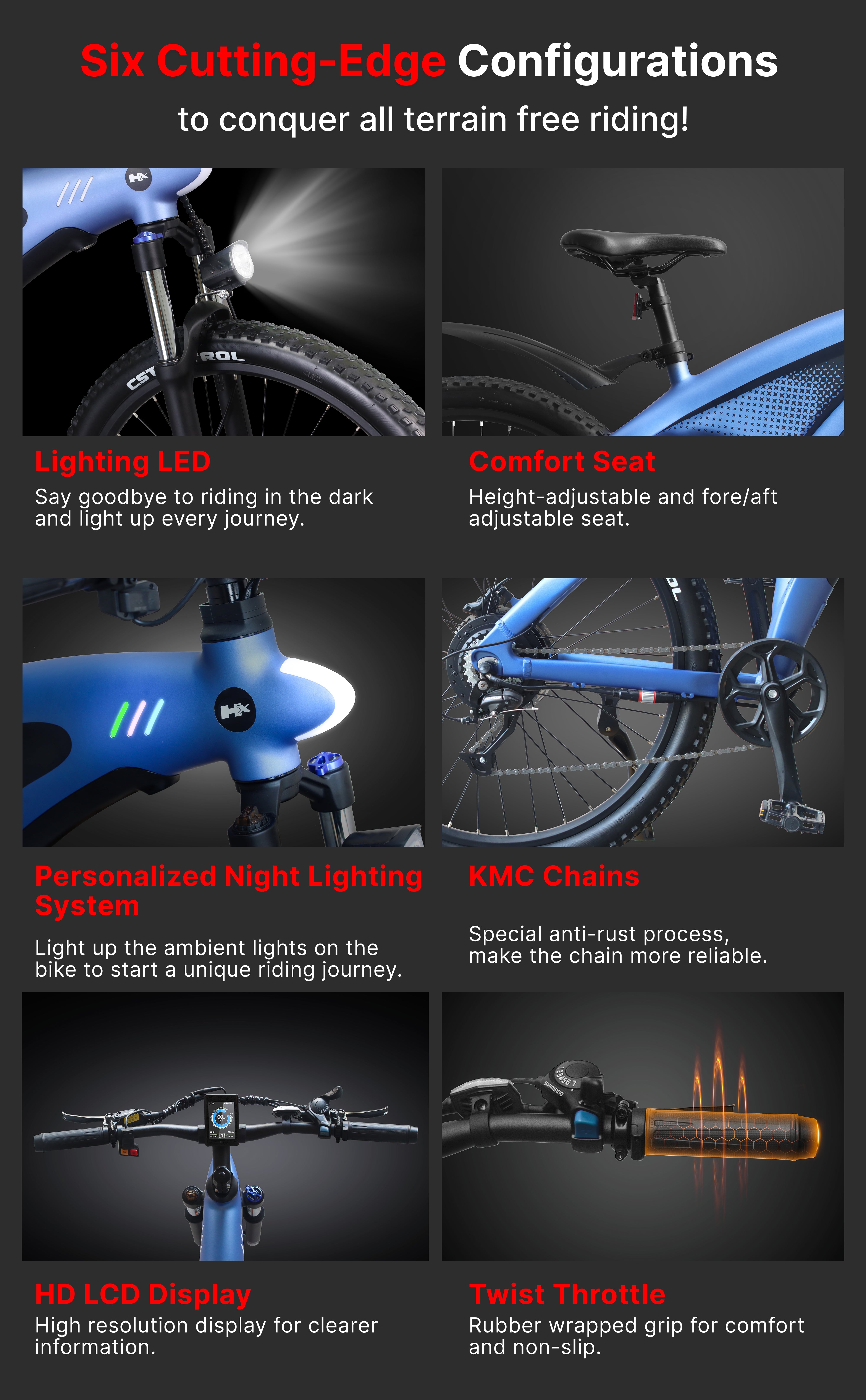

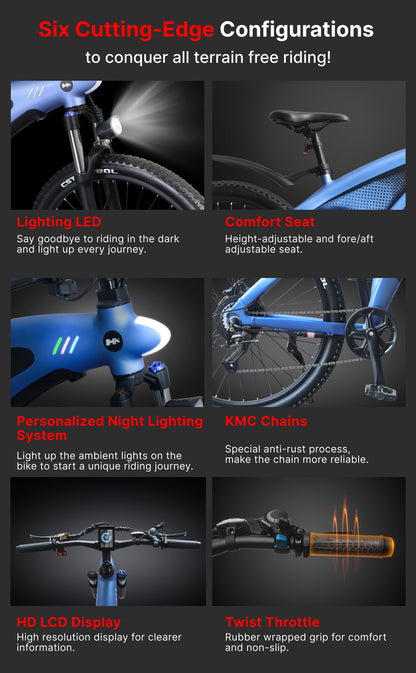

360° Smart Control
Take command with the LCD smart display and ergonomic handlebars. Monitor speed, battery life, and assist level instantly, while thumb controls give easy access to lights, horn, and turn signals.

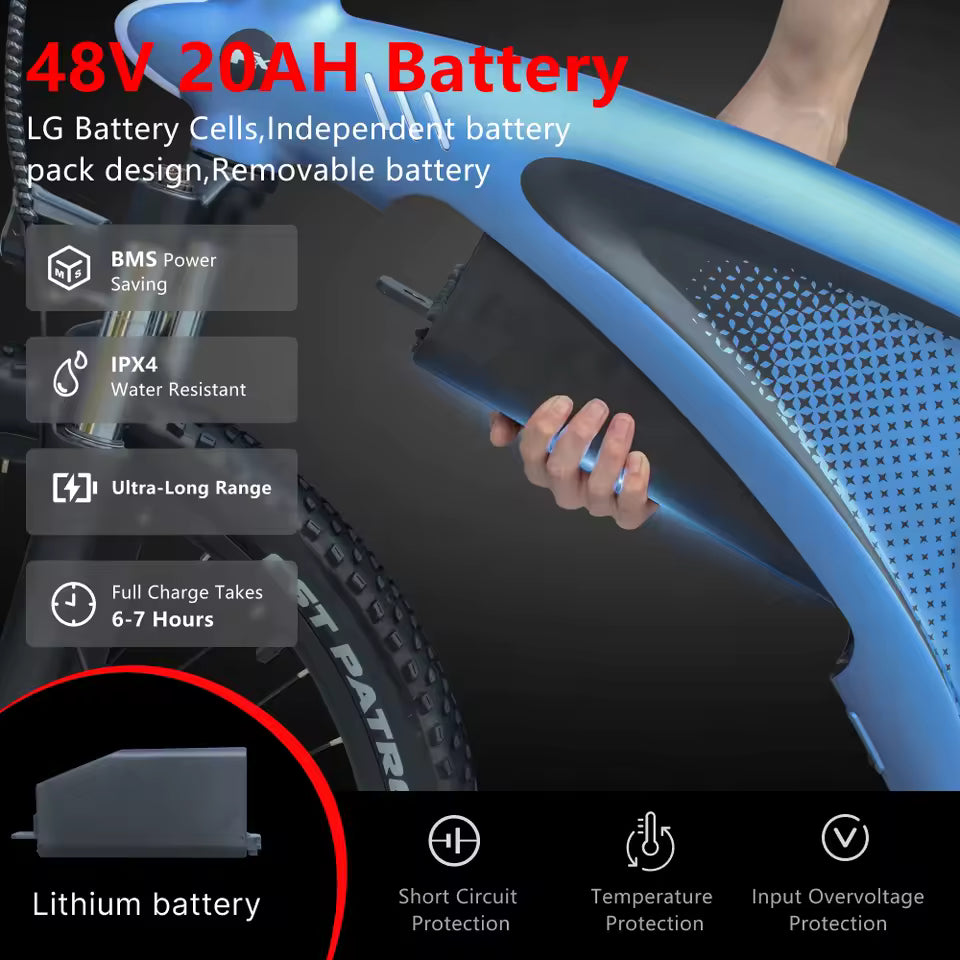

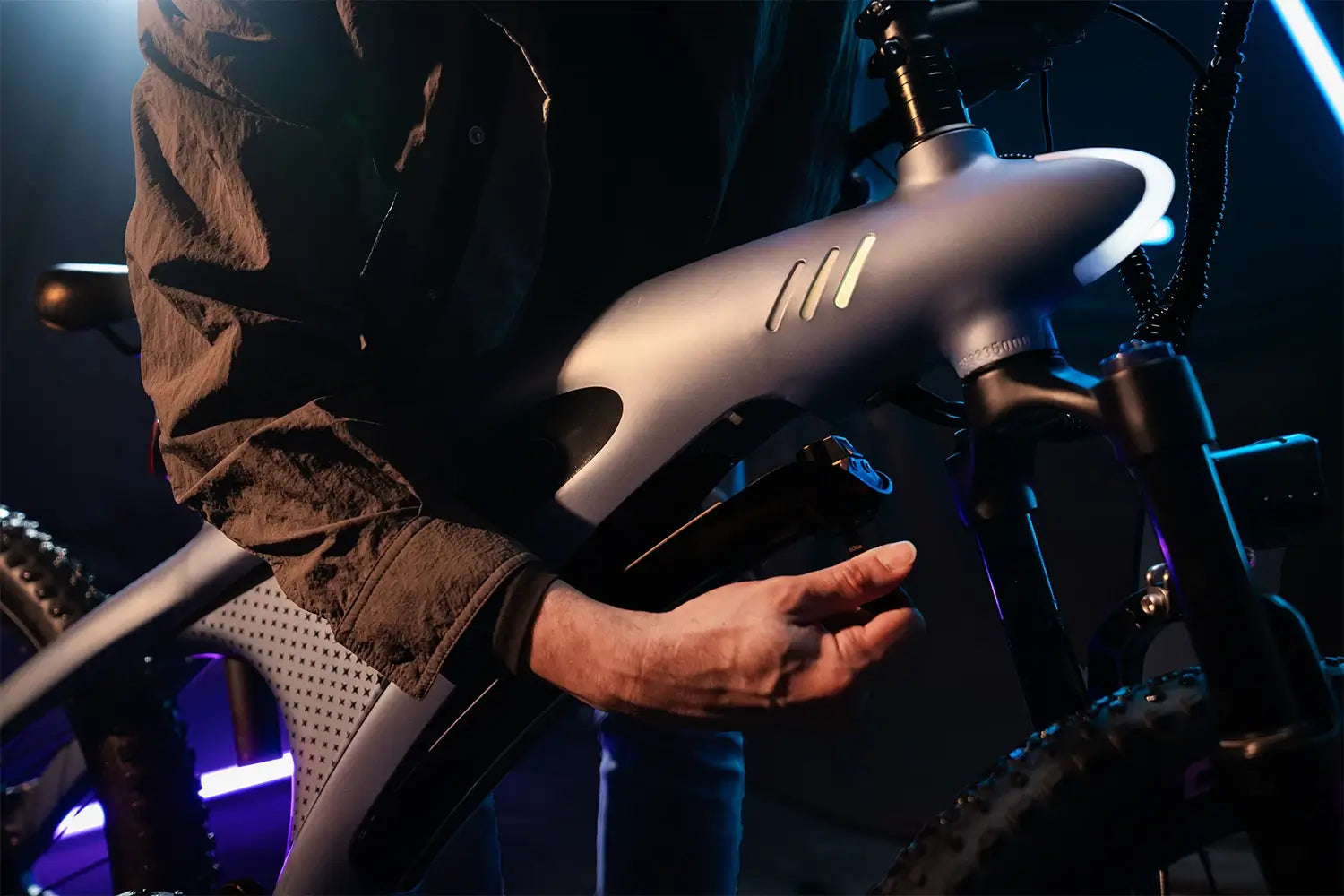

Removable Battery
HX eBike features a removable lithium battery that fits neatly into the downtube for fast, secure installation. Its hidden design maintains a clean look, and you can charge it on or off the bike for added convenience.
Twist Throttle
The right-hand twist throttle provides instant acceleration at your command. From busy streets to rugged trails, enjoy smooth and responsive power whenever you ride.

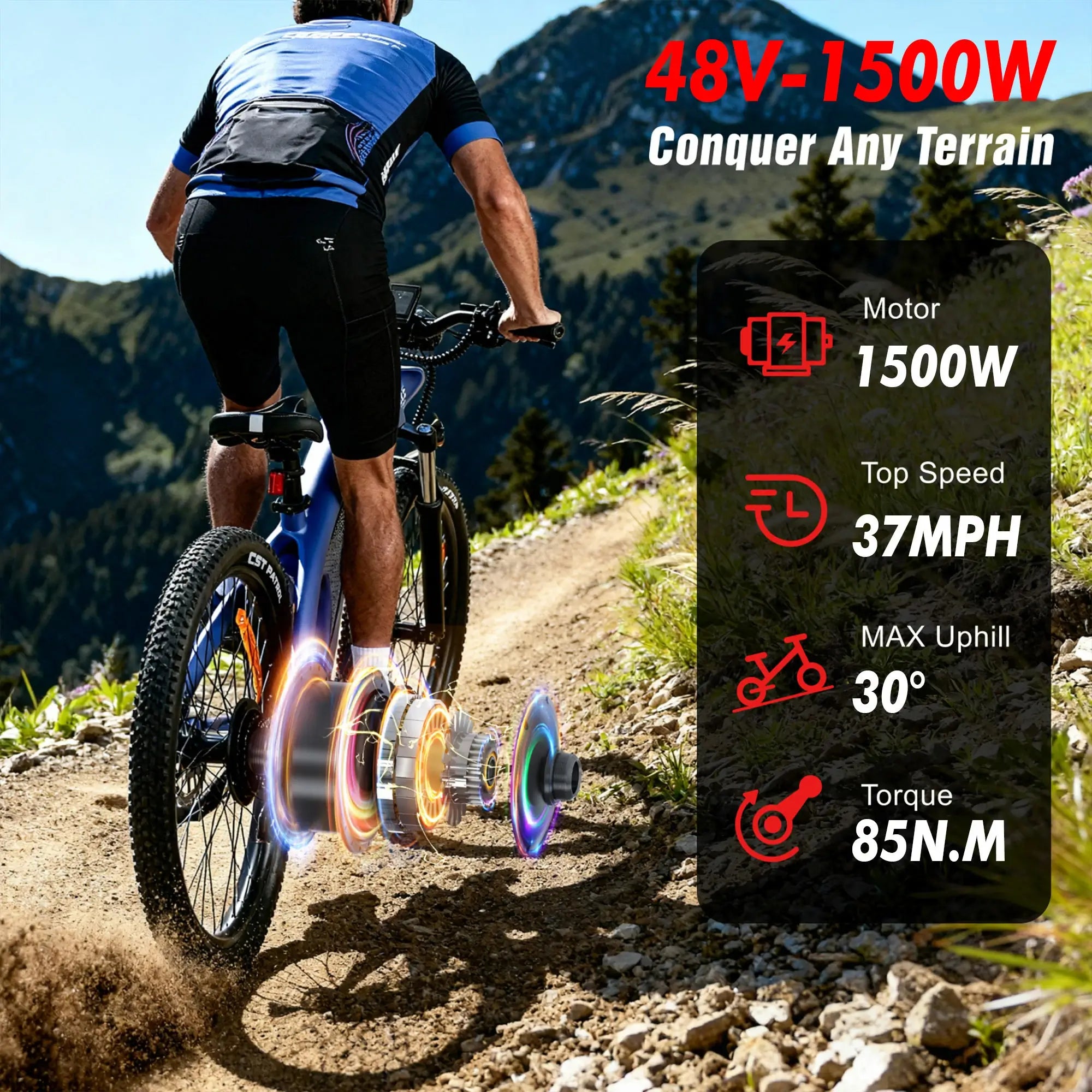

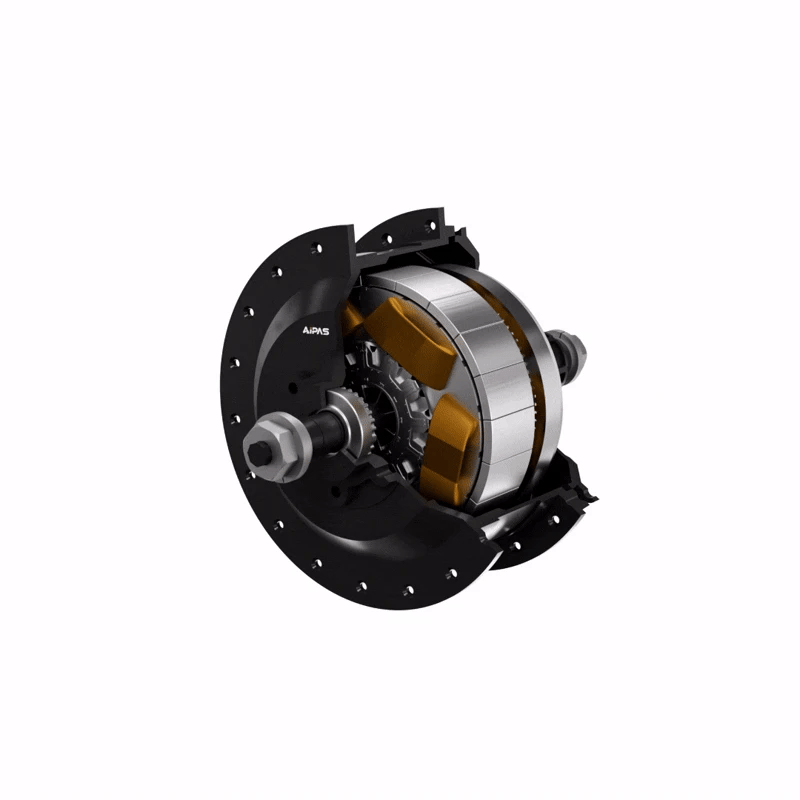

SUTTO 1500W Motor
Developed by BAFANG, SUTTO rear motor delivers 750W rated, 1500W peak power and 85 Nm torque with 78% efficiency. FOC control ensures smooth, quiet output; planetary gears provide stable transmission. Alloy cooling shell with IPX6 protection enhances durability. Smart safety system: overcharge, over-discharge, overcurrent, short-circuit, auto cut-off. High-quality magnets, rigorous testing, 80,000-mile life, only 7 lbs.
Powerful Li-ion Battery

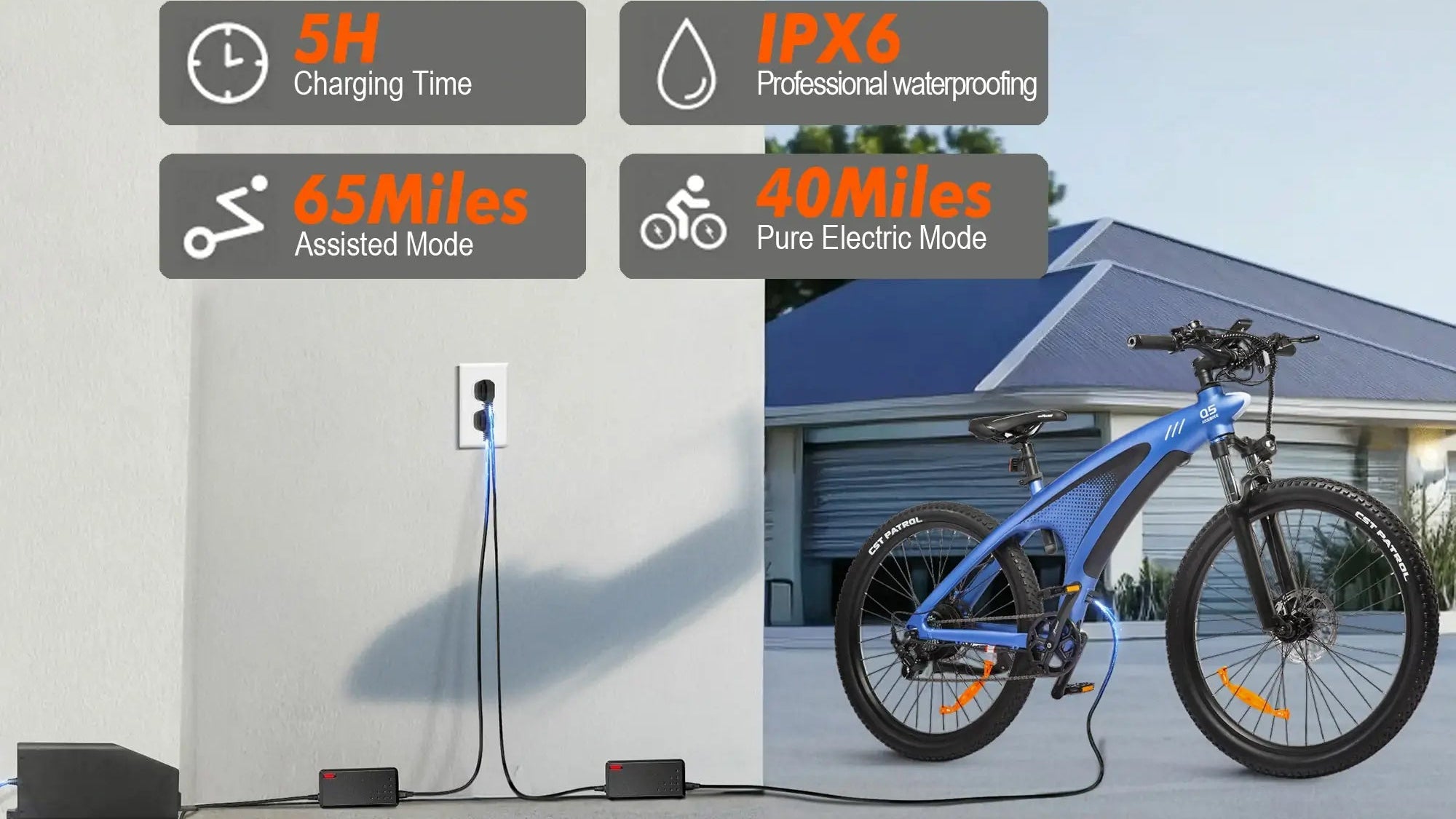

Shark Mako comes with a 48V 20Ah lithium battery, delivering up to 120km of pedal-assist range and recharging fully in only 6 hours.
